Bring the System Online

Connect Directly to the DEFINITY ECS

Return to Task List

You can connect directly from the PC if it is 50 ft (15 m) or less from the DEFINITY ECS.

Connect the equipment as shown in A typical direct connection. Also see PC connections by platform.


Caution! For a DC-powered system, install an EIA 116A Isolator (comcode 106005242) in series between the cable and the TERM, DOT, or Terminal Active connector.

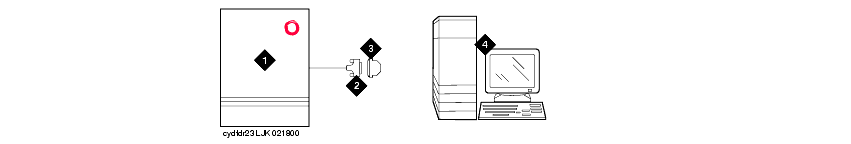

A typical direct connection

Figure Notes:
      1. DEFINITY ECS (PPN on R8r)

      2. 50-ft (15-m) M25A cable (RS-232)

      3. 9-to-25 pin adapter if needed

      4. Computer with DSA or DNA

PC connections by platform
Reliability
R8r
R8si
R8csi

Standard

Terminal Active

TERM

TERM

High/Critical

--

DOT

--

Return to Task List
