Bring the System Online

Connect Remotely to the DEFINITY ECS Through a Data Module

Return to Task List

If the PC is more than 50 ft (15 m) from the DEFINITY ECS, you can connect it through a data module.

Connect the equipment as shown in A typical remote connection using an 8400B (top) or 7400B (bottom) data module.

Note:

With a 7400A or 7400B+ data module, use a 4-wire digital line circuit pack. With the 8400B+ data module, use a 2-wire digital line circuit pack.

In place of a 7400B+ data module, you can use a 7400A data module. If you do, see Set the Data Module to DCE Mode.

Wire the digital line circuit pack to the wall jack as follows:

For a 7400B+, wire to the second and third pair of the wall jack.

For an 8400B+, wire to the first pair of the wall jack.

After connecting the data module, check the Task List: Make Data Module Settings and perform any necessary tasks.

Return to Task List

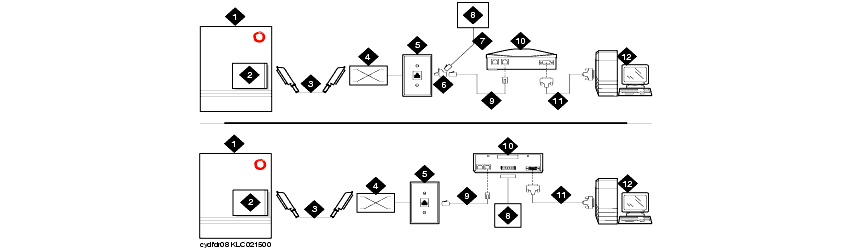

A typical remote connection using an 8400B (top) or 7400B (bottom) data module

Figure Notes:

DEFINITY ECS

Digital line circuit pack

B25A 25-pair cable

Main distribution frame (MDF)

103A or Lucent modular wall jack

400B2 adapter

D6AP power cord (8400B+ only)

Data module power supply

7-ft (2-m) D8W modular cord

Data module (8400B+ [top] or 7400B+ [bottom])

50-ft (15-m) M25A cable (RS-232)

Computer with DSA or DNA

Return to Task List

Task List: Make Data Module Settings

Set the Data Module to DCE Mode if necessary

Add a Data Module to the Switch

Test Hardware Connections

Set the Data Module Operating Mode

Set the 7400B+ Options
