Install and Connect Single-Carrier Cabinets

Connect DC Power Distribution Unit Ground

Return to Task List

  1. Measure and cut a length of 6 AWG (#40) (4 mm 2) wire long enough to reach between the GROUND DISCHARGE bar in the DC Power Cabinet and the GRD connector on the DC Distribution Unit. See DC Power Distribution Unit Ground.

  2. At the DC Power Cabinet, connect a the 6 AWG (#40) (16 4 mm 2) wire to the GROUND DISCHARGE bar.

  3. Route the opposite end of the wire to the DC Power Distribution Unit and connect the wire to the GRD connector.

  4. Repeat Steps 2 and 3 for each remaining DC Power Distribution Unit.

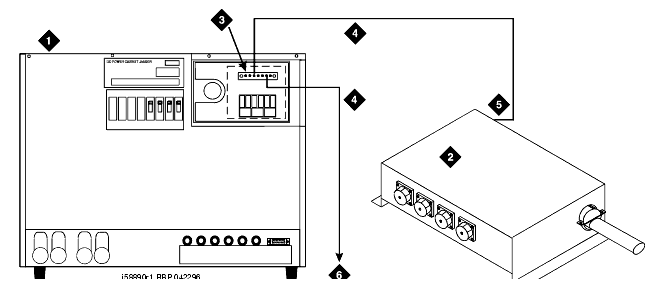

DC Power Distribution Unit Ground

Figure Notes:
      1. DC Power Cabinet

      2. DC Power Distribution Unit

      3. Ground Discharge Bar

      4. 6 AWG (#40) (4 mm2) Wire

      5. GRD Connector Terminal on DC Power Distribution Unit

      6. To Additional DC Power Distribution Units (if required)
