Connect Single-Carrier Cabinet Ground
Return to Task List
- Cut a length of 6 AWG (#40) (4 mm
2) wire long enough to reach between the GROUND DISCHARGE bar on the DC Power Cabinet and the single-point ground block on the Control Cabinet (bottom cabinet in Single-Carrier Cabinet Ground).
- At the DC Power Cabinet, connect the wire to the GROUND DISCHARGE bar.
- Route the wire to Control Cabinet and connect to the single-point ground block.
- Repeat for each Control Cabinet in the system room (duplicated Control Cabinet and Expansion Control Cabinet).

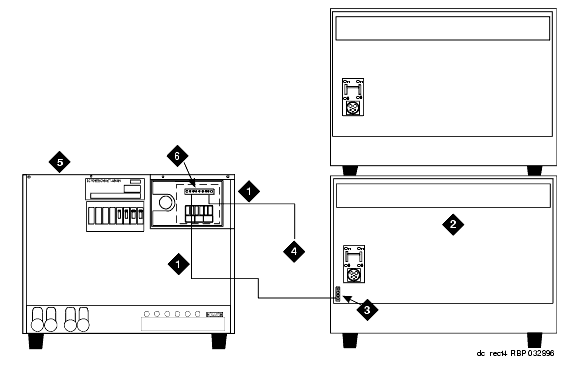

Single-Carrier Cabinet Ground
Figure Notes:
- 6 AWG (#40) (4 mm2) Wire
- Control Cabinet (Cabinet A)
- Single-Point Ground Block
- To Additional Control Cabinets in Same Room
- DC Power Cabinet
- Ground Discharge Bar
