DEFINITY Made Easy Tools
Issue 2, November 2000
System 75 XE to R8si (Blowback)
Install TDM/LAN bus terminators [75 XE upgrade]
If the PPN has only 1 single-carrier cabinet, install AHF110 TDM/LAN bus terminators in slot 22 and slot 02. See Locations of TDM/LAN bus terminators for single-cabinet PPN.
If the PPN has more than 1 single-carrier cabinet, install an AHF110 TDM/LAN bus terminator in slot 02 of the cabinet in the A position and in slot 17 of the upper-most port cabinet. (See TDM/LAN connections for R8si PPN.)

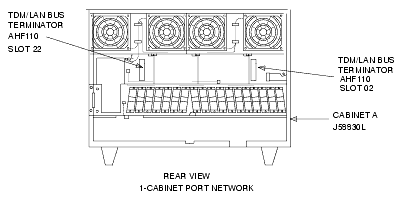

Locations of TDM/LAN bus terminators for single-cabinet PPN

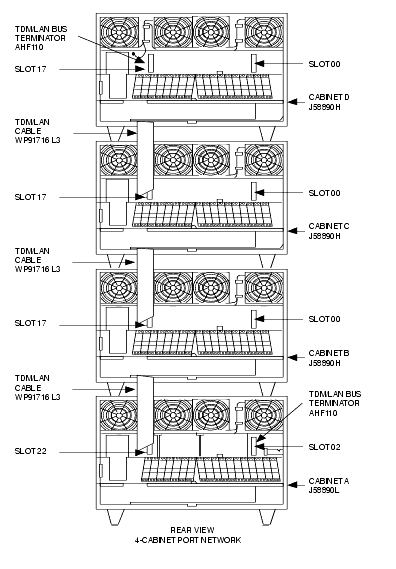

TDM/LAN connections for R8si PPN
|
|
|
|
|
|
|
|
|
|
