Issue 2, November 2000



System 75 XE to R8si (Blowback)

Install cable clamps [75 XE upgrade]

Return to Task List

Behind the cabinets using screws provided, install two cable clamps on each ground plate (see Locations of ground plate and cable clamps on single-carrier cabinet). These clamps are used to hold the port cables.

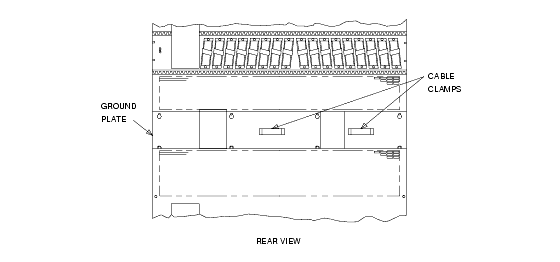

Locations of ground plate and cable clamps on single-carrier cabinet
