G3vs/R5vs/R6vs to R9si (On-Site)

Install TDM/LAN bus terminators [G3vs, R5vs, R6vs to R9si]

Return to Task List

  1. Install the 2 AHF110 TDM/LAN bus terminators in slots 02 and 20 of the cabinet (see Location of TDM/LAN bus terminators).

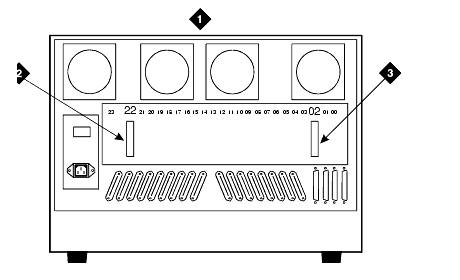

Location of TDM/LAN bus terminators

Figure Notes:
      1. Rear of control cabinet

      2. TDM/LAN bus terminator in slot 22

      3. TDM/LAN bus terminator in slot 02

Return to Task List
