Configuring the General Directory Application Administration Screen

  1. From the Welcome screen, select the General Administration screen link (or select the Right Arrow icon at the bottom of the Welcome screen).

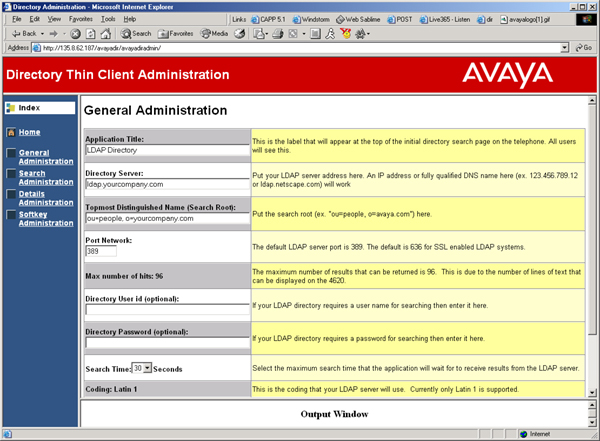

Figure D-7. Directory Application Administration Screen

  1. All fields except Directory User ID and Directory Password are required. Table D-2 shows the Administration screen fields, their associated key names, default values, and descriptions:
Table D-2. Administration Screen Fields
Field Title
Key Name
Default
Description
Application Title
DIRSVRNAME
4620 Directory Application
Label appearing at top of the user interface’s Directory Search screen.
Directory Server
DIRSRVR
Null
LDAP server address, IP address or fully-qualified DNS name.
Topmost Distinguished Name (Search Root)
DIRTOPDN
Null
The search root base (usually “ou=people” or o=company name). Note that spaces and other special characters may need to be treated as specified in RFC 2253, Lightweight Directory Access Protocol (v3): UTF-8 String Representation of Distinguished Names.
Port Network
DIRLDAPPORT
389 for LDAP
686 for SSI-enabled LDAP
Directory Server Port.
Max number of hits

96
The maximum number of result entries that can be displayed on the 4620.
Directory User ID
DIRUSERID
Optional
User name for authorized Directory search, if required.
Directory Password
DIRSRVRPWD
Optional
User’s password for authorized Directory search, if required.
Directory Search Time
DIRSEARCHTIME
10 seconds
Maximum amount of time the application will wait for search results (01 - 59 seconds).
Directory Coding
DIRCODING
Latin 1
No other option is currently available.

  1. Press the Save Changes button as stated at the bottom of the screen to save the values entered. When you complete the final administration screen, you will have the opportunity to review all values on all screens.
