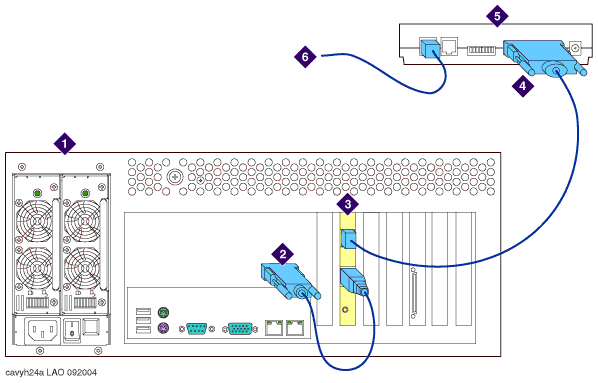

| 1 |
S3400-H
(For example purposes only, an S3400-H with side-by-side power
supplies and an integrated video and LAN is shown.) |
| 2 |
RMB-to-COM2
serial port adapter cable |
| 3 |
RMB faceplate (This board might be shown in different PCI slots,
depending on the type of motherboard that is installed.) |
| 4 |
RMB-to-modem port adapter cable |
| 5 |
External
modem (model varies per region) |
| 6 |
Telephone
cord to tip/ring connection on the corporate switch |
