The location of the primary IDE connector changes depending on
the type of motherboard that is installed:

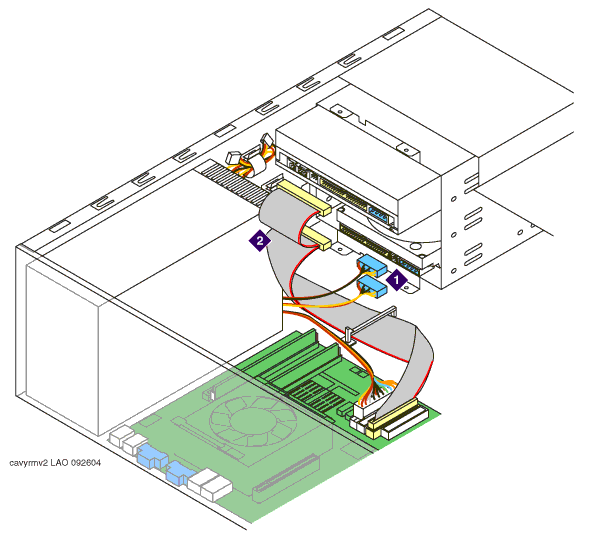

Nonintegrated video and LAN model
| 1 |
Disk drive and DVD player power connectors |
| 2 |
80-pin IDE ribbon cable to the DVD and hard drive
(hda), and the primary IDE (PRI IDE) connector on the
motherboard |

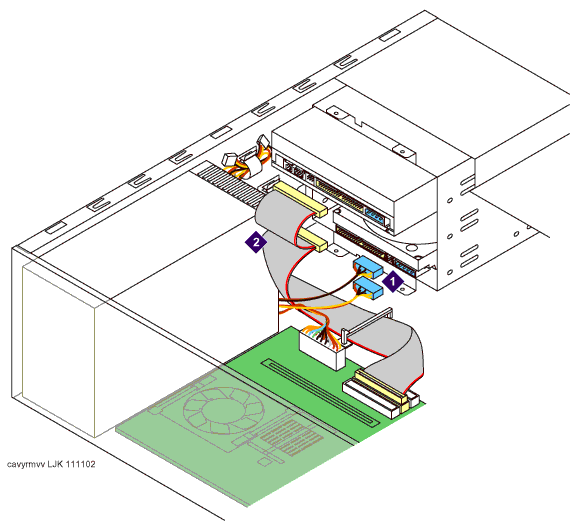

Integrated video and LAN
| 1 |
Disk drive and DVD player power connectors |
| 2 |
80-pin IDE ribbon cable to the DVD and hard drive
(hda), and the primary IDE (PRI IDE) connector on the
motherboard |
