Replacing the motherboard to LED panel cable

The front LED panel connection varies depending on the type of motherboard that is installed:

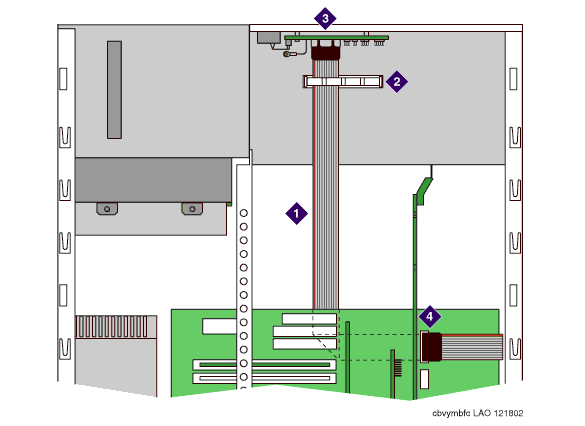

Nonintegrated video and LAN model

1	Motherboard to LED panel flat ribbon cable
2	Cable tie-down strap
3	J4 connector on the LED panel
4	J8H1 Front Panel connector on the motherboard

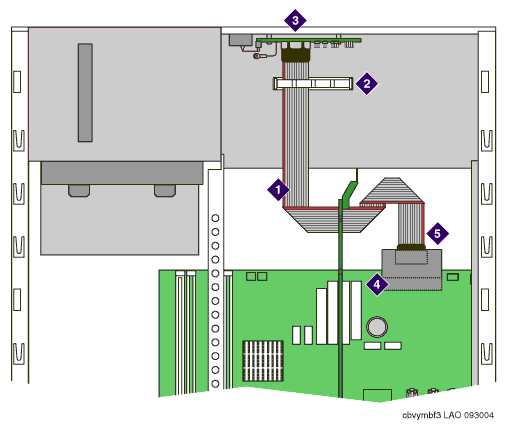

Integrated video and LAN model

1	Motherboard to LED panel cable
2	Cable tie-down strap
3	J4 connector on the LED panel
4	Front Panel connector on the motherboard
5	Translator board that connects to the LED panel cable
