Web Agent Procedure

To configure VTP snooping using the Web Agent:

  1. In the navigation pane, expand the Modules & Ports folder, and then click Configuration. The Module Information Web page is displayed in the content pane. See Figure�53.
  2. Select the number in the Switch Ports column for the module you want to configure VTP. The Switch Ports Web page for that module is displayed. See Figure�55.
  3. Select the port in the Name column on which you want to enable VTP Snooping throughout the switch. The Switch Port Configuration Web page is displayed for that port. See Figure�56.
  4. Select either IEEE 802.1Q or Multi-layer in the Trunk Mode field to match the setting of the trunk mode for the switch port at the other end of the link.
  5. Select Enable in the VTP Snooping field. This enables VTP snooping on the switch port.
  6. Click APPLY to save your changes, or CANCEL to restore previous settings.
  7. In the navigation pane, expand the L2 Switching > VLANs folders, and then click VTP Snooping. The VTP Snooping Configuration Web page is displayed in the content pane. See Figure�58.

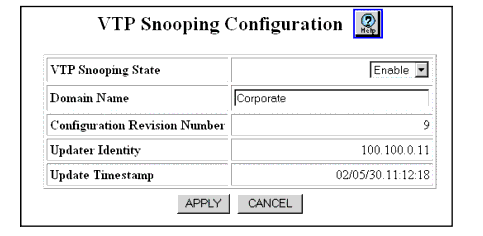

Figure�58:�VTP Snooping Configuration Web Page


  1. See Table�38 and configure the VTP Snooping parameters.

Table�38:�VTP Snooping Parameters �
Parameter
Description
VTP Snooping State
Select Enable to enable VTP snooping globally for the switch. The default value is Disable.

Note: Enabling or disabling VTP Snooping does not clear any learned VTP information.

Domain Name
Enter the name associated with the Cisco VTP Domain. The default is Null (not set). Changing this parameter automatically clears the learned VTP information (the remaining parameters in this table).

Note: The domain name is automatically learned from a Cisco VTP switch provided both the Domain Name is Null and the VTP Snooping State is enabled on the switch.

Configuration Revision Number
Displays the VTP snooping configuration revision number associated with the last successful VTP configuration update on the switch.

Note: VLANs are only be learned by VTP Snooping when a received VTP message has a Configuration Revision Number greater than this learned value.

Updater Identity
Displays the IP address of the Cisco switch that initiated the VTP configuration update.
Update Timestamp
Displays the date and time that the Cisco switch initiated the VTP configuration update. The format of the timestamp is "yy/mm/dd.hh:mm:ss", where yy/mm/dd represents the year, month, and day and hh:mm:ss represents the hours, minutes, and seconds.

  1. Click APPLY to save your changes, or CANCEL to restore previous settings.
