808A Emergency Transfer Panel and Telephone
Installation Examples���

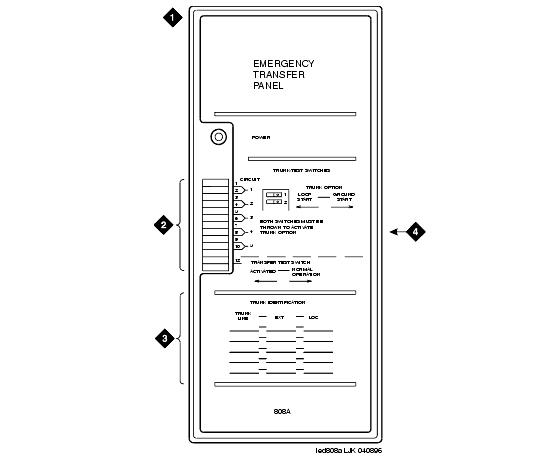

808A Emergency Transfer Panel shows a typical 808A Emergency Transfer Panel. The 808A connects to the Main Distribution Frame (MDF) with B25A or A25B cable.

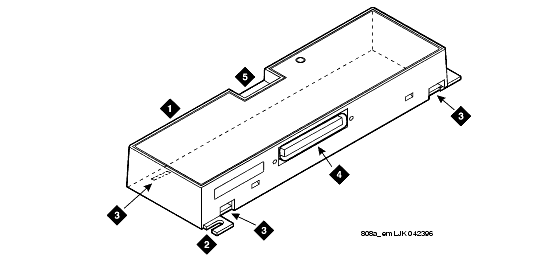

The panel can be installed on any mounting frame in either a vertical or horizontal position. The housing has ears for screw-mounting and cutouts for snap-mounting the unit in an 89-type mounting bracket. See 808A Emergency Transfer Panel Mounting.

Task List: Typical Emergency Transfer Panel and Telephone Installation:

• Install the 808A Emergency Transfer panel
• Install Telephones Used Only for Emergency Transfer (Trunk/Auxiliary Field)
• Install Telephones Used for Emergency Transfer and as Normal Extension (Trunk/Auxiliary Field)

808A Emergency Transfer Panel��

808A Emergency Transfer Panel Mounting
