Avaya Ethernet Switch LEDs���

The Avaya Ethernet Switch P333T has the LEDs shown in LEDs on Avaya P333T Ethernet switch:

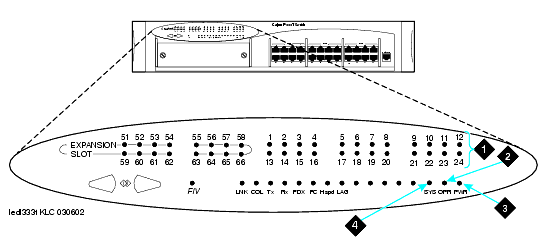

LEDs on Avaya P333T Ethernet switch


Figure notes

  1. Ports in use
  2. CPU boot status
  1. Power
  2. Lights if this module is the Avaya P33x stack master agent

For descriptions of the other LEDs refer to the quick start guide and user guide that comes with the model of Avaya Ethernet switch you have.
