Installing VAL
NOTE: To install a TN2501AP, make sure that the system is enabled for TN2501AP (VAL) boards. If the Maximum VAL boards field on the Customer Options screen is set to 0, then you need to obtain and install a new license file before you can install the card.
Installing the pack includes:
Verifying the required hardware
Make sure that you have the required hardware:
- TN2501AP VAL circuit pack (108772583). See Faceplate of VAL circuit pack.
- 10/100BaseT backplane adapter (848525887--same one used for the IP Media Processor). See Backplane Adapter.
- LAN cable with RJ45 connectors (customer supplied).
Faceplate of VAL circuit pack��

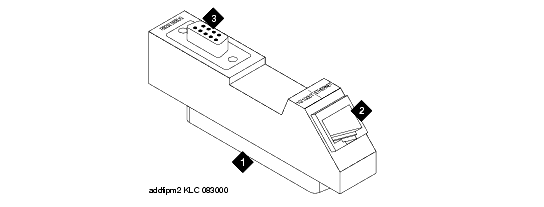

Backplane Adapter��
Figure notes
2 RJ45 LAN cable connection
- 10 Mbps uses CAT3 cable.
- 100 Mbps uses CAT5 cable.
|
3 This connector is not used for VAL.
|
