Install the cables

Determine into which port slots you are putting the TN2302AP IP Media Processor circuit packs.

From the rear of the media gateway:

Connect the amphenol connector on the adapter to the Amphenol connector corresponding to each TN2302AP slot. Refer to TN2302AP Amphenol Adapter.

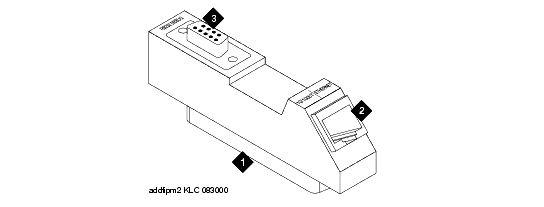

TN2302AP Amphenol Adapter��

Figure notes
1 Amphenol connector to backplane connector corresponding to TN2302AP slot	2 To network 3 9-pin connector for maintenance

Connect the network cable(s) to the ETHERNET connector on the TN2302AP backplane adapter(s). Refer to TN2302AP Amphenol Adapter.

NOTE: You need a CAT5 or better cable for 100-Mbps operation.
