DEFINITY Made Easy Tools
Issue 3, December 2001
Install Fiber Optic Cable Pass-Thru Kit (Multicarrier Cabinets)
Dupicated DS1 Converter Complex Administration for T1 TN1654 Circuit Packs
Fiber Link Administration form for E1 TN1654 Circuit Pack (DS1 Converter Complex Administration) (page 2 of 3) allows you to admininster the DS1 converter.
The following unique fields display when administering a TN1654 DS1 Converter.
- Bit Rate -- A display-only field for TN1654 entered on page 3 of the form. 1.544 indicates domestic T1 operation and 2.048 indicates international E1 operation. See at DS1C Converter Complex Administration for TN574 Circuit Packs for more information.

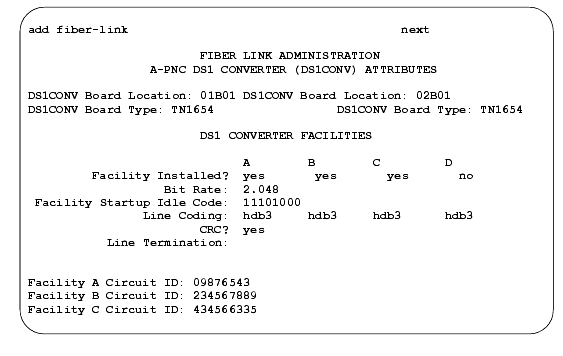

Fiber Link Administration form for E1 TN1654 Circuit Pack (DS1 Converter Complex Administration) (page 2 of 3)
|
|
|
|
|
|
|
|
|
|
