Install and Connect Multi-Carrier Cabinets

Connect Battery Leads (J58890CH-1)

Return to Task List

Typical Small Battery Assembly shows a typical optional small battery holdover assembly. These assemblies may ship with the battery leads disconnected to prevent the batteries from discharging.

  1. Plug the battery connector into the -48 VDC Batteries connector on the rear of the J58890CH-1 Power Distribution Unit.


Caution! Power is present in the cabinet even if the AC power cable is unplugged. When procedures require ALL power to be removed from the cabinet and to prevent unnecessary discharging of the battery, turn off the main circuit breaker located on the front of the power distribution unit.

  1. Be sure the main power to the power distribution unit is OFF.

  2. At the power distribution unit, set all carrier circuit breakers OFF.

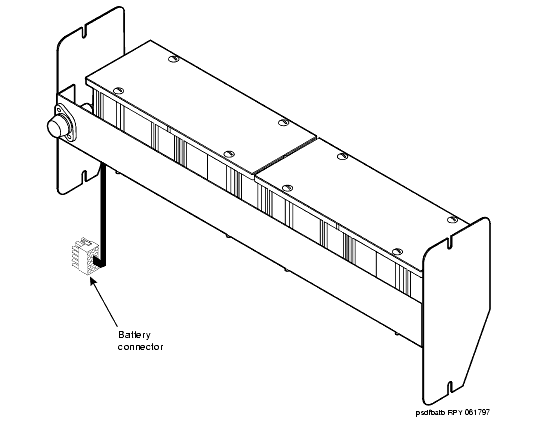

Typical Small Battery Assembly

Return to Task List
