Install Telecommunications Cabling

Install Cable Slack Managers

Return to Task List

  1. Place the Z113A Cable Slack Manager against the wall under the MDF. See Cable Routing Through Cable Slack Manager (SCC). Align the left side of the cable slack manager with the first terminal block of the trunk/auxiliary field.

  2. Place the next cable slack manager beside the previously installed unit. Align the tabs and interlocks and snap the units together.

  3. Repeat Step 2 until all cable slack managers are installed.


Note: Nine 1/4-in. holes (0.63 cm) are provided in a cable slack manager base if earthquake mounting is required. If a base is mounted on an uneven floor, shims may be required for leveling and to assure proper fit of the covers.

Holes are provided in the sides of the base for bolting cable slack manager together. Bolts and shims must be obtained locally.

  1. The system cables will route through the cable slack manager as shown. Complete cable routing is covered later in this chapter.

Cable clamps are required in installations with cable slack managers. At the rear of the cabinets, install 2 cable clamps using the screws provided. These clamps hold the 25-pair input/output or MDF cables in place. Cable Routing Through Cable Slack Manager (MCC) and Cable Routing Through Cable Slack Manager (SCC) show cable clamp placement and cable routing.

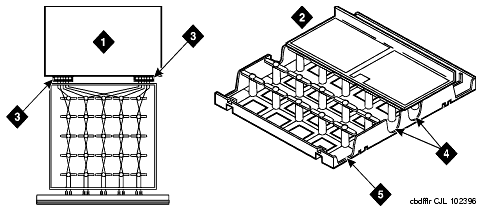

Cable Routing Through Cable Slack Manager (MCC)

Figure Notes:
      1. Top of System Cabinet

      2. Cable Slack Manager

      3. Cable Clamp

      4. Spare Center Troughs

      5. Cabinet Trough for Port Cables

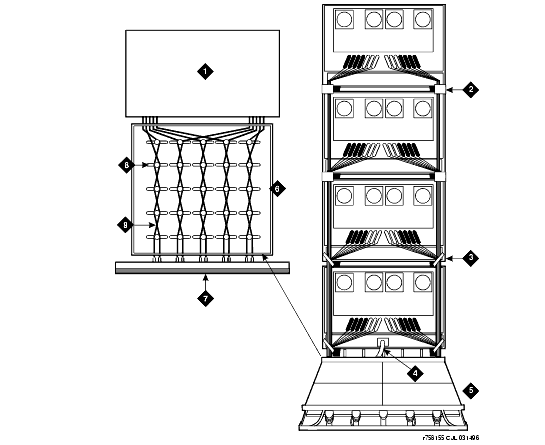

Cable Routing Through Cable Slack Manager (SCC)

Figure Notes
      1. Top of System Cabinets

      2. Cable Clamps

      3. Cable Ties (Optional)

      4. Power Cord

      5. Cable Slack Manager

      6. Cable Slack Manager (Cover Removed)

      7. Main Distribution Frame (MDF)

      8. Route Cables Along Path Shown

      9. Port Cables
