Install Telecommunications Cabling
Mount 110P-type terminal blocks on a frame
The 900-pair 110P-type terminal blocks and the associated patch cord troughs can also be mounted on a free-standing, floor-mounted 1110A2 Apparatus Mounting Frame. See 1110A2 and 1110C1 Apparatus Mountings.
Each 1110A2 provides the space to mount 5 terminal blocks/patch cord troughs on each side of the frame. A cable support structure, apparatus mounting 1110C1, mounts directly on top of the 1110A2 and provides support for all cables routed to and from the frame. See Apparatus Mounting Frame Information

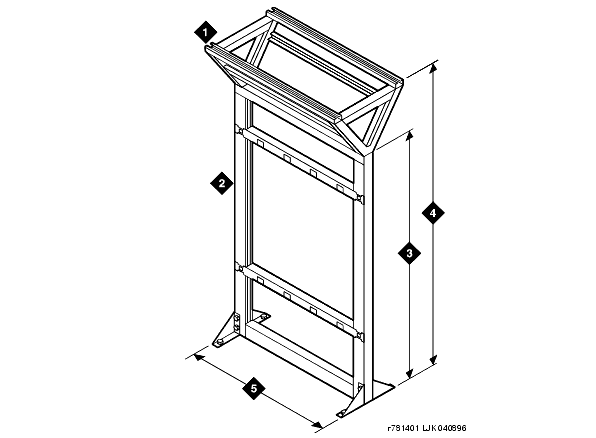

1110A2 and 1110C1 Apparatus Mountings
