Install and Connect Single-Carrier Cabinets

Connect Battery Cabinet

Return to Task List


Caution! Power is present in the cabinet even if the AC power cable is unplugged. Turn off the main circuit breaker on the front of the cabinet when procedures require ALL power to be removed from the cabinet.

Connect the DC Battery Cabinet to the DC Power Cabinet.

DC Battery to DC Power Cabinet Connections shows how to make typical connections from the DC Battery Cabinet to the DC Power Cabinet.

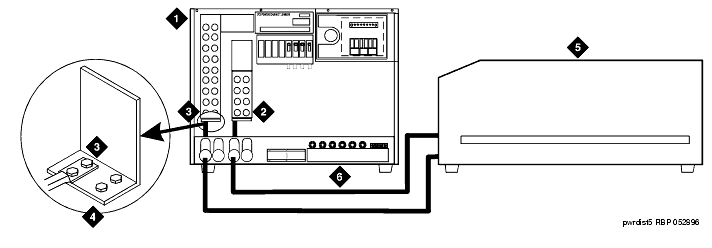

DC Battery to DC Power Cabinet Connections

Figure Notes:
      1. DC Power Cabinet

      2. Connect Red DC Power Cable to
        -48 VDC Return Bus

      3. Connect Black DC Power Cable to
        -48 VDC Bus

      4. Inset Applies to -48 VDC Buses and -48 VDC Return Buses

      5. Battery Cabinet

      6. DC Power Cables (Red and Black)
