Install and Connect Single-Carrier Cabinets
Install Front Ground Plates (Systems with Radiation Shielding and Earthquake Protection)
Ground plates are installed between stacked cabinets, provide the ground connection between cabinets, provide radio frequency (RF) radiation protection, and help stabilize the cabinets.
Use the front ground plate instead of the cabinet clip to attach the cabinets to each other. Use one front ground plate between two stacked cabinets.
- At the front of the cabinets, align the holes in the top of the front ground plate with the holes at the bottom of the upper cabinet, and insert the four screws. Do not tighten the screws yet. See Rear Ground Plate and Front Plate or Cabinet Clip -- Side View.
- At the front of the cabinets, align the holes in the bottom of the front ground plate with the holes at the top of the lower cabinet. Insert the four supplied #12-24 x 1/2-inch (1.27 cm) thread-forming screws. Do not tighten the screws yet.
- Repeat Steps 1 and 2 until all stacked cabinets are fastened together.
- Tighten all screws securely.

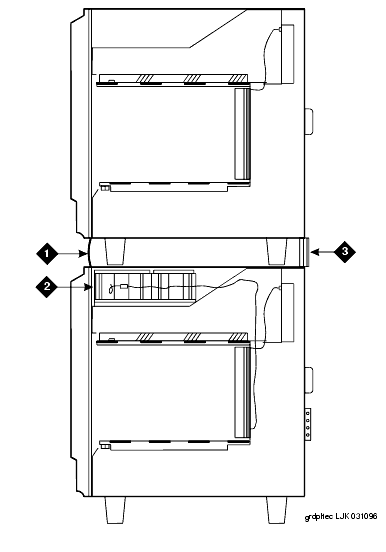

Rear Ground Plate and Front Plate or Cabinet Clip -- Side View
Figure Notes:
|
|
|
|
|
|
|
|
|
|
