Issue 3, December 2001



Install Telecommunications Cabling

Main Distribution Frame

The preferred location of the Main Distribution Frame (MDF) is directly behind the Single-Carrier Cabinet stack or the Multi-Carrier Cabinet. Typical 110A-Type Terminal Blocks (SCC) shows a typical Single-Carrier Cabinet installation using 110A-type terminal blocks, and Typical 110P-Type Terminal Blocks (MCC) shows a typical Multi-Carrier Cabinet installation using 900-pair 110P-type terminal blocks.

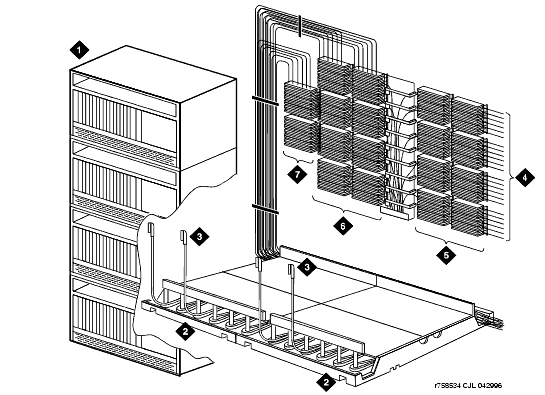

Typical 110A-Type Terminal Blocks (SCC)

Figure Notes
      1. Single-Carrier Cabinets (Stacked)

      2. Z113A Cable Slack Manager

      3. 25-Pair Cable to System Cabinet

      4. Station Cables

      5. Station Distribution Field

      6. Port Distribution Field

      7. Trunk/Auxiliary Field

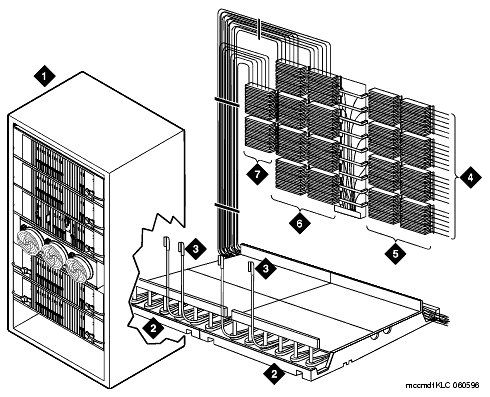

Typical 110P-Type Terminal Blocks (MCC)

Figure Notes
      1. Multi-Carrier Cabinet

      2. Z113A Cable Slack Manager

      3. 25-Pair Cable to System Cabinet

      4. Station Cables

      5. Station Distribution Field

      6. Port Distribution Field

      7. Trunk/Auxiliary Field
