Option Switch Settings

Printer Option Settings

Return to Task List

Printers can be used with a management terminal as journal printers for the hospitality feature and also as an output device for Call Detail Recording (CDR).

A572 printer can function as a CDR device, system printer, or journal printer. The options are set with function keys rather than DIP switches. Control Panel for 572 Printer shows the arrangement of the function keys on the printer control panel.

Load the printer with paper and turn the power off (Callout 1).

Simultaneously press and hold the Print Quality and On Line buttons. Press the Power On button. Release all three buttons. The printer is now in set-up mode and it prints current settings:

If the printer is used with a management terminal, CDR, or as a journal printer, set the options as shown in 572 Printer Used with Management Terminal, CDR, and Journal Printer. If the printer is used as the system printer, set the options as shown in 572 Printer Used as System Printer.

Use Line Feed or Form Feed to step through the options for the function.

Press On Line. This activates the menu for the function. Use Line Feed and Form Feed to step through the options for the function.

When a desired option is located, press Print Quality. Each time an option is set, the setting is printed. Repeat for each option to be set.

When finished, press Print Quality. The printer changes to normal mode.

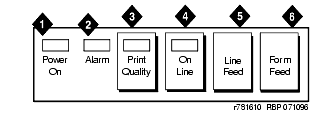

Control Panel for 572 Printer

Figure Notes:

Power On Button

Alarm Button

Print Quality Button

On Line Button

Line Feed Button

Form Feed Button

Table 1.
572 Printer Used with Management Terminal, CDR, and Journal Printer
Function	Function Name	Menu	Menu Status
01	FORM LENGTH	09	11
02	LPI	01	6
03	CPI	01	10
04	LQ or NLQ	01	LQ
05	BUZZER	01	ON
06	FONT	02	FONTCART
07	RESOLUTION	01	144
11	BUFFER	02	N-LINE
13	PW ON MODE	01	ON-LINE
14	DIRECTION	01	B1-DIR.1
15	BUFF FULL	02	LF + CR
16	P.E.	01	ACTIVE
17	AUTO CARRIAGE RETURN (CR)	01	CR + LF
18	ZERO	01	0
22	AUTO LINE FEED	01	CR ONLY
31	1'' SKIP	01	OFF
32	CHAR.SET (GO, GL)	02	USA
33	CHAR.SET (G1, GR)	01	UK
34	CHAR SET (G2)	03	GE
35	CHAR SET (G3)	07	LINE DRAWING
81	OFF-LINE STATE	01	ALL RECEIVE
82	DSR	02	OFF
83	REQUEST TO SEND (RTS) TIMING	01	RTS
84	CD	02	OFF
85	CLEAR TO SEND (CTS)	02	OFF
91	OVER RUN	02	256
92	DATA BIT	02	8
93	PROTOCOL	03	XON/XOFF
94	STOP BIT	01	1
95	PARITY	01	NONE
96	PBS (matches connected device)	01	9600

Table 2.
572 Printer Used as System Printer
Function	Function Name	Menu	Menu Status
01	FORM LENGTH	09	11
02	LPI	01	6
03	CPI	01	10
04	LQ or NLQ	01	LQ
05	BUZZER	01	ON
06	FONT	02	FONTCART
07	RESOLUTION	01	144
11	BUFFER	02	N-LINE
13	PW ON MODE	01	ON-LINE
14	DIRECTION	01	B1-DIR.1
15	BUFF FULL	02	LF + CR
16	P.E.	01	ACTIVE
17	AUTO CARRIAGE RETURN (CR)	01	CR + LF
18	ZERO	01	0
22	AUTO LINE FEED	01	CR ONLY
31	1'' SKIP	01	OFF
32	CHAR.SET (GO, GL)	02	USA
33	CHAR.SET (G1, GR)	01	UK
34	CHAR SET (G2)	03	GE
35	CHAR SET (G3)	07	LINE DRAWING
81	OFF-LINE STATE	01	ALL RECEIVE
82	DSR	02	OFF
83	REQUEST TO SEND (RTS) TIMING	01	RTS
84	CD	02	OFF
85	CLEAR TO SEND (CTS)	02	OFF
91	OVER RUN	02	256
92	DATA BIT	02	8
93	PROTOCOL	03	XON/XOFF
94	STOP BIT	01	1
95	PARITY	01	NONE
96	PBS	04	1200
