Disassemble the G3V4vs System [G3V4vs, R5vs, R6vs to R10si]
Return to Task List
- Remove any unused 25-pair cables from the rear of the system.
- Loosen the 4 shoulder screws that hold the cabinet to the mounting plate (see Exploded view of DEFINITY vs cabinet).
- Remove the locking screw that holds the cabinet to the center of the mounting plate.
- Return the system cabinet to its locked operating position.
- Align the 4 shoulder screws with the keyhole slots and remove the cabinet from the mounting plate.
- Remove the 5 lower wood screws from the wall plate and loosen the top 2 wood screws.
- Remove the mounting assembly.
- Remove the top 2 wood screws.

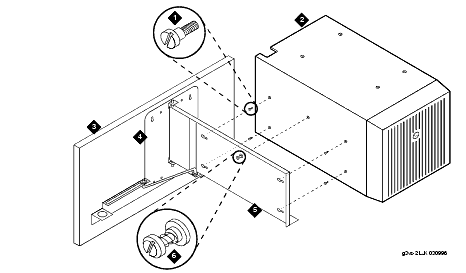

Exploded view of DEFINITY vs cabinet
Figure Notes:
- Shoulder screws
- Compact single-carrier cabinet
- Plywood sheet
- Wall-mounting plate with keyhole slots
- Cabinet support bracket
- Locking screws on spring-loaded housing
