System 75 Small-Cabinet to R8si (Blowback)

Remove tape drive [75 small upgrade]

Return to Task List

Note:

The tape drive does not have to be physically removed at this time. You can disconnect it now, and then remove it after you complete the upgrade and time is less critical.

Remove the tape.

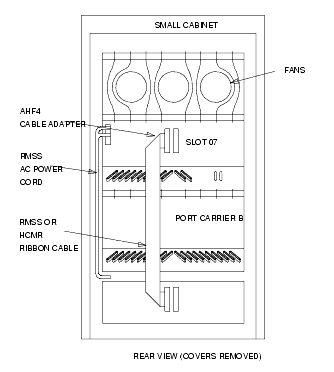

Disconnect the AHF4 cable adapter from behind slot 07 of control carrier A (see R1V3 System 75 cabinet).

Open the snap connectors to remove the adapter from the tape drive's ribbon cable. Route the cable back to the tape drive and remove it. (There are 2 cable clamps on the cabinet's side panel. Use a screwdriver to unsnap them.)

Neither the cable nor the adapter will be used in the upgraded cabinet.

Disconnect and remove the tape drive.

On the HCMR tape drive, disconnect the power supply from the front of the unit. Then remove the screws at the rear of the unit that attach the drive to the chassis, and slide the tape drive out the front of the cabinet.

On the RMSS tape drive, disconnect the red and black wire. Remove the faceplate. Then remove the screws that hold the unit to the chassis. Slide the drive out the front of the cabinet.

Coil the red and black wire in an out-of-the-way position in the cabinet.

Install the 176A Apparatus Blank over the empty space left by the removal of the tape drive.

R1V3 System 75 cabinet
