System 75 Small-Cabinet to R8si (Blowback)
Install cable clamps [75 small upgrade]
Behind the cabinets using screws provided, install two cable clamps on each ground plate (see Locations of ground plate and cable clamps on single-carrier cabinet). These clamps are used to hold the port cables.

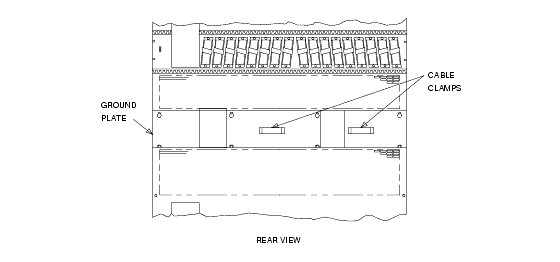

Locations of ground plate and cable clamps on single-carrier cabinet
|
|
|
|
|
|
|
|
|
|
