| Home > MAS Administration > MAS - Visual Voice Editor (VVE) Window |
|
MAS - Visual Voice Editor (VVE) Window |
The Visual Voice Editor provides a graphical user interface for recording company prompts for use by the automated attendant. Customized prompts can be recorded using the local multimedia capabilities on a personal computer. The Visual Voice Editor displays audio data as a waveform to enable precise editing of a prompt.

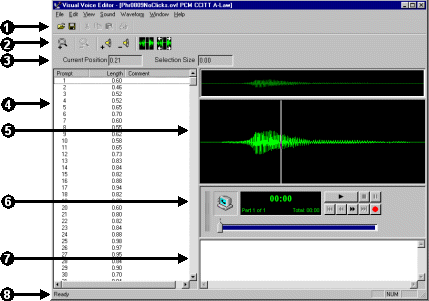

On your Windows desktop, click the Start > Programs > Avaya Modular Messaging > Visual Voice Editor menu to launch the Visual Voice Editor window.
|
1 Main Toolbar
2 Waveform Toolbar
3 Waveform Info
4 Prompts View
|
5 Waveform View
6 Voice Player
7 Comment View
8 Status Bar
|
The Prompts View lists all the prompts that are stored in the currently selected prompt file. When you add a prompt or select one from the list, you can use the Comment View to edit its description.
See MAS - VVE - Prompts View & Comments View.
The currently selected prompt is graphically represented as a waveform in the Waveform View. You can edit audio data, using the Overview and Detailed sections of the Waveform View, the Waveform Toolbar, the Waveform Info fields and the Voice Player.
See MAS - VVE - Waveform View.
 |
|
|
