Issue 3, December 2001



Add IP Solutions

Upgrade IP trunks (R7) to H.323 trunks

Return to Task List

If there are existing IP trunk connections that you want to upgrade to H.323 trunk connections, do the following steps. Otherwise, go to Upgrade to TN802B (R10)

To upgrade an existing IP trunk (R7) to an H.323 trunk (R10) requires first getting IP information from the existing TN802 before upgrading the TN802 to TN802B.

  1. Click on My Computer > Control Panel > Network.

  2. Click the Protocols tab.

  3. Select TCP/IP Protocol from the list.

  4. Click the Properties option in the Network window . Write down the IP address, subnet address, and gateway address shown for adaptor [2] For an example, see TCP/IP Properties Window - IP Address, Adapter [2].


Note: Do not use the addresses for adapter [1].

  1. When done, click OK, OK.

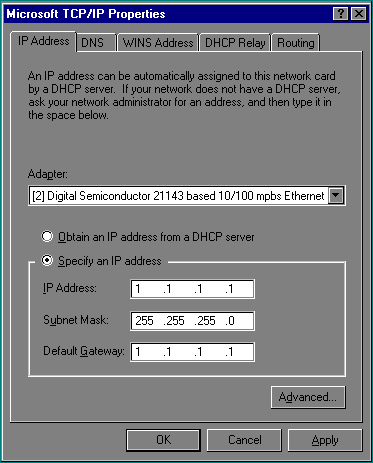

TCP/IP Properties Window - IP Address, Adapter [2]

Return to Task List
