Install and Connect Single-Carrier Cabinets

Connect DC Power Cabinet Ground

Return to Task List

  1. At the DC Power Cabinet, connect a 1 AWG (#70) (7 mm 2) ground wire to the GROUND DISCHARGE bar. See DC Power Cabinet Grounding.

  2. Route the ground wire out of the cabinet and terminate it on the approved ground.


Caution! The approved ground must be connected using the correct gauge wire, terminated with a listed clamp, and identified with a grounding tag (FORM 15657NR, or equivalent).

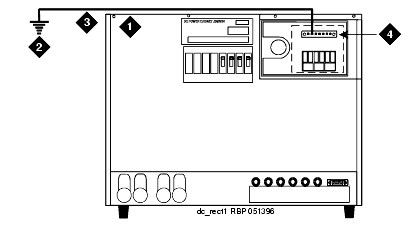

DC Power Cabinet Grounding

Figure Notes:
      1. DC Power Cabinet

      2. To Approved Ground

      3. 1 AWG (#70) (7 mm 2) Wire

      4. Ground Discharge Bar

Return to Task List
