Connect DC Battery Cabinet Frame Ground
Return to Task List
- Cut a length of 6 AWG (#40) (4 mm
2) wire long enough to reach between the DC Power Cabinet and the DC Battery Cabinet. See Frame Ground Wiring Between Power Cabinets.
- Crimp a terminal lug on the each end of the wire. The terminal lugs are furnished as part of D-181895, kit of parts.
- At the DC Battery Cabinet, attach the 6 AWG (#2540) (6 4 mm
2) wire to the frame ground mounting hole using a pan head slotted screw, star washer, and hex nut. Tighten the screw securely.
- Route the opposite end of the wire to the DC Power Cabinet.
- Attach the 6 AWG (#40) (4 mm
2) wire to the mounting hole in the top of the cabinet. Use a pan head slotted screw, star washer, and hex nut. Tighten the screw securely.

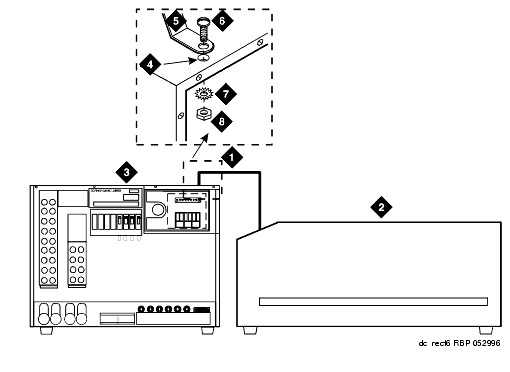

Frame Ground Wiring Between Power Cabinets
Figure Notes:
- 6 AWG (#40) (4mm
2) Wire
- DC Battery Cabinet
- DC Power Cabinet
- Grounding Hole in Top of Cabinets
- Terminal Lug (Part of D-18181895)
- Pan Head Slotted Screw
- Star Washer
- Hex Nut
Return to Task List
