Issue 3, December 2001



System 75 XE to R8si (Blowback)

Install port cabinets [75 XE upgrade]

Return to Task List


Danger! The cabinet may weigh as much as 130 pounds and requires 2 handlers. Use caution to avoid injury.


Danger! Before inserting or removing a circuit pack from a cabinet, put on a wrist strap and attach its plug or clip to the cabinet's frame.

  1. Place the port cabinets into the positions from which they were previously removed (see 4-cabinet R8si PPN -- front view doors removed).

  2. Replace the circuit packs and power supplies in port cabinets C and D if they were previously removed.

  3. Install the new labels on the front and rear of the port cabinets.

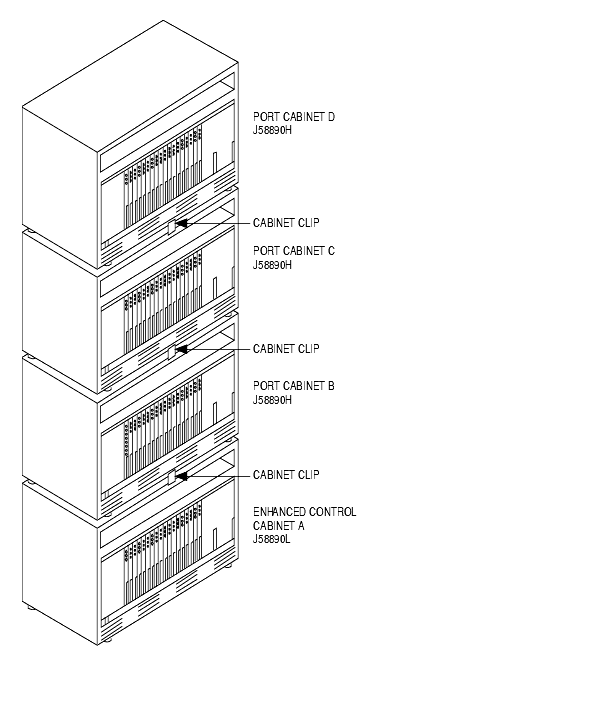

4-cabinet R8si PPN -- front view doors removed
