DEFINITY Made Easy Tools
Issue 3, December 2001
System 75 XE to R8si (Blowback)
Install cabinet clip(s) [75 XE upgrade]
A cabinet clip, used to ground and stabilize the cabinets, is required between each cabinet. Use this procedure to install the cabinet clips in systems without earthquake protection.
At the front of the cabinets, install the cabinet clip between the cabinets by hooking the clip into the slot of the upper cabinet and snapping the straight leg of the clip into the slot on the lower cabinet (see Locations of ground plate cabinet clip and battery).

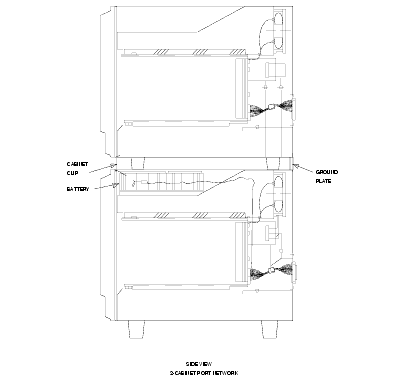

Locations of ground plate cabinet clip and battery
|
|
|
|
|
|
|
|
|
|
