Floor plans and equipment layouts for typical system installations are provided in the Overview of the Avaya S8700 Media Server with G600 Media Gateway.
Avaya G600 Media Gateways are typically installed in the same equipment room as the Avaya S8700 Media Server rack hardware; however, they can be installed in another location, including another state or country. A port network consists of up to 4 media gateways in a rack, with the media gateway in the A location (bottom of the rack) being the one containing the TN2312AP IP Server Interface (IPSI) circuit pack.
NOTE: Before you begin the installation, check the location of the AC/DC power receptacles. The receptacles must be on separately fused circuits not controlled by wall switches. They must be located within 10 feet (3 meters) of the rack and outside the Main Distribution Frame (MDF) area.
NOTE: For convenience, we recommend installing the reference IPSI, the one associated with the license file, in a port network in the same room as the control network hardware.

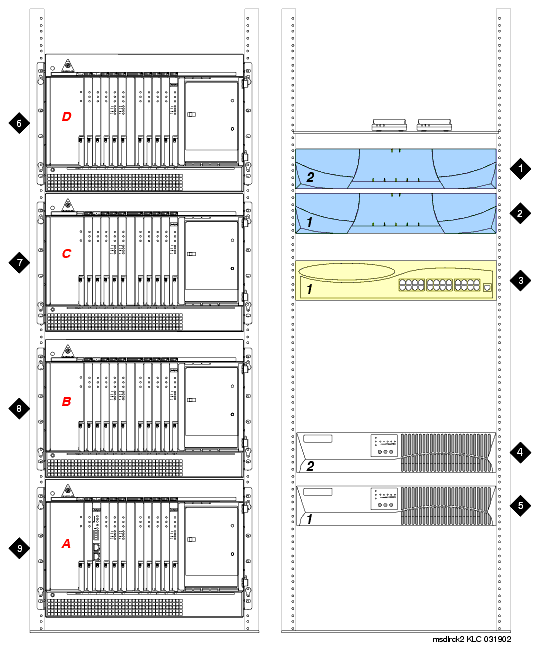

Avaya G600 Media Gateways installed next to the media server rack shows a typical Avaya G600 Media Gateway installation.
Avaya G600 Media Gateways installed next to the media server rack����
Perform these tasks to install the Avaya G600 port network:
|
|
|
