Install and Connect Multi-Carrier Cabinets
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
DEFINITY Made Easy Tools
Issue 3, December 2001
Install and Connect Multi-Carrier Cabinets
Caution! | Grounding of the system shall comply with the general rules for grounding contained in Article 250 of the National Electrical Code, NFPA 70. For more information, refer to Approved Grounds. |
Thegrounding methods for the DC-powered system are more complex than that of an AC-powered system.
Typical Power and Ground for a DC-Powered Cabinet shows a typical power and ground layout for a DC-powered cabinet. The size of the wire required for the -48 volt DC and -48 volt return must ensure the voltage supplied by the battery plant is maintained between -42.5 and -54.2 volts DC at all times for proper operation and to prevent hardware damage. The wire must be sized for a maximum voltage drop of 0.5 VDC in each leg of the DC distribution. This procedure applies to both PPN and EPN cabinets.
Perform these tasks to connect DC power and ground, power distribution unit (J58890CH-1 Only):
Perform these tasks to connect DC Power and Ground (J58890CF Only):
Note: | These installation tasks correspond to the numbers in Typical Power and Ground for a DC-Powered Cabinet: |

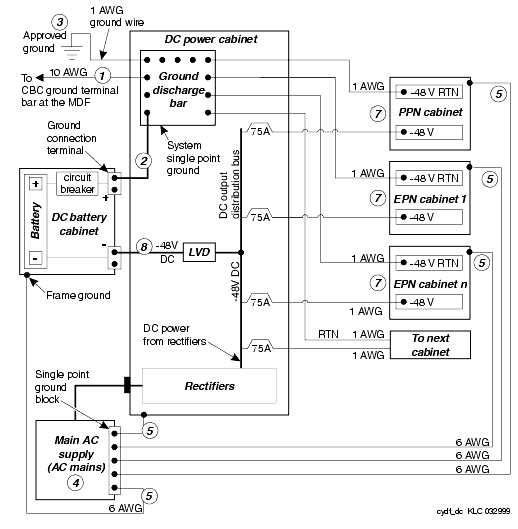

Typical Power and Ground for a DC-Powered Cabinet
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
